Griffin 3-Lug Barrel Adapter
The Griffin 3 Lug adapters are HK pattern and will work with any 3 lug silencer on the market made to this standard. They will also work with Griffin 3 lug interface assemblies.

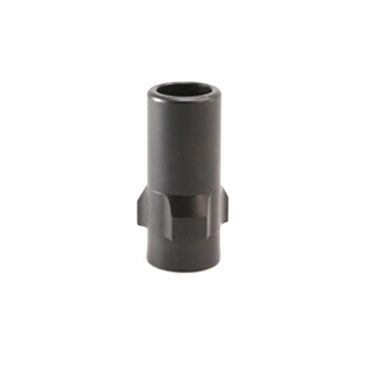

The 5/8x24 and 13.5x1mm LH versions have a cylindrical machined extension added to the mount. The 13.5mm version has flats for a wrench on that cylinder extension and has the O-ring interface typical of 13.5x1 LH mounts. The other 3 Lugs are the smaller version pictured. The 5/8x24 is meant to provide a 3 Lug mount to 30 caliber barrels but is also compatible to 9mm barrels where that thread is uncommonly used. Most 30 caliber barrels are threaded 5/8x24 thread pitch.
1/2x28 Thread Total Length: 1.4375". Based off of industry standard .625" barrel threads, added length should be ~.8125". 5/8x24 Thread Total Length: 2.125". Based off of industry standard .625" barrel threads, added length should be ~1.5".
Made from 17-4ph stainless and Melonite QPQ treated.
NOTE: The "45" designated options are only compatible with B&T spec "45 3-Lug" mounting systems.
| Price | $68.00 |
|---|---|
| Manufacturer | Griffin Armament |
| Apply Partial Payment | No |
| Allow Full Payment? | No |
| Allow Flexy / Layaway Payments? | No |
| Down Payment | 0.000000 |
The Griffin 3 Lug adapters are HK pattern and will work with any 3 lug silencer on the market made to this standard. They will also work with Griffin 3 lug interface assemblies.
The 5/8x24 and 13.5x1mm LH versions have a cylindrical machined extension added to the mount. The 13.5mm version has flats for a wrench on that cylinder extension and has the O-ring interface typical of 13.5x1 LH mounts. The other 3 Lugs are the smaller version pictured. The 5/8x24 is meant to provide a 3 Lug mount to 30 caliber barrels but is also compatible to 9mm barrels where that thread is uncommonly used. Most 30 caliber barrels are threaded 5/8x24 thread pitch.
1/2x28 Thread Total Length: 1.4375". Based off of industry standard .625" barrel threads, added length should be ~.8125". 5/8x24 Thread Total Length: 2.125". Based off of industry standard .625" barrel threads, added length should be ~1.5".
Made from 17-4ph stainless and Melonite QPQ treated.
